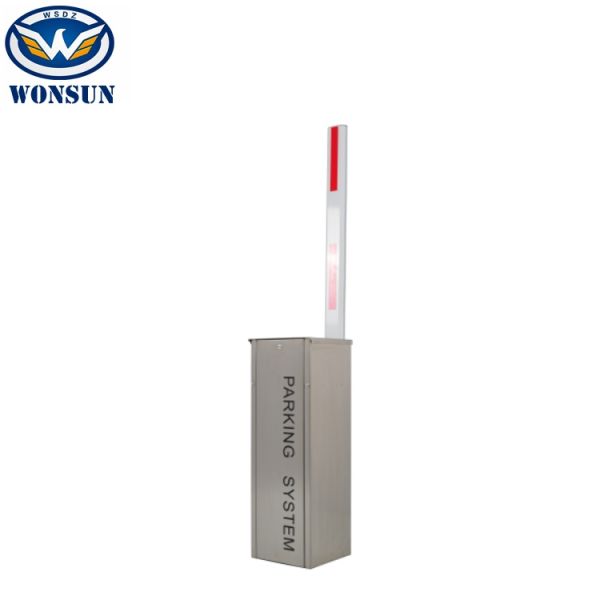

304 Stainless Steel Traffic Barrier Gate with Fast Interchange and 2.5m Boom Length
| Model No. | DZ-290 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 1030*380*450mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | 24/100/240VAC,50/60HZ |
| Output Power | 56.8N.m |
| Working Temperature | -35°C to +65°C |
| Remote control system | ≤100m(open,sunny weather) |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 3-6M;2.5M |
| Opening/Close Time | 0.9sec-8sec;0.6sec-8sec(adjustable) |
Functions and Features:
1 The running speed can be adjusted (0.9sec-8sec;0.6sec-8sec)
2 Arm direction can be quickly interchanged
3 When poweroff ,manual open and close arm,and lock itself
4 Wireless remote
5 Photosell output
6 Loop detector anti-collision port output
7 open and close control input
8 12v traffic light output
9 Traffic light signal output
10 open and close limit signal output
11 counting(fleet)input RS485 coomunication input
12 24v battery input port
13 Delay close arm function (1-300 sec.adjustable)
14 open and close arm speed decleration function
15 one-key setting arm type with corresponding speed
16 Arm auto reverse function (Force adjustable)
17 Anti-collision alarm function(additional sensors and alarms are required)
18 RS485 communication input
19 Automatic arm lift fuction when power off (need to add power storage module)
Our Services
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
